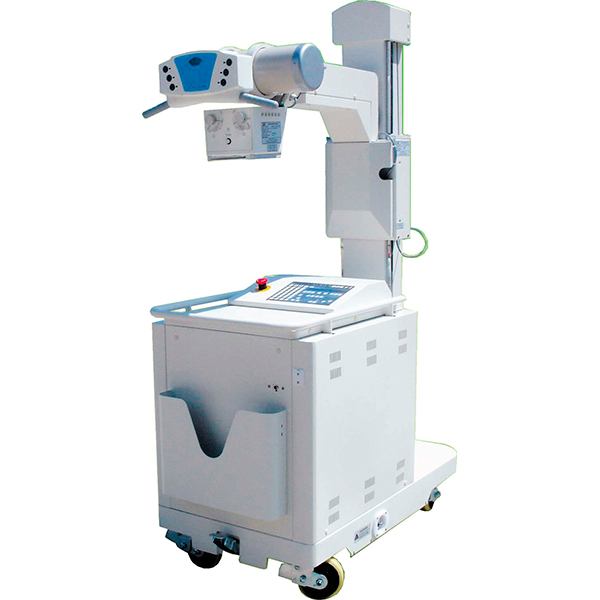

Unité de radiologie conventionnelle mobile

PX-300HF

The PX-300HF system is easy, flexible, and powerful to use for every situation.
Its motor driven system is able to make operators to perform the machine in small emergency rooms.
ECORAY’s high frequency inverter technology is heading to more premiums, durable and comfortable imaging solution.

MAIN UNIT
Better choice for your examinations.

Motor driven for forward, reverse and each direction movement
Hand brake system
Upgradeable to Mobile Digital Radiography system
With overall unit size width (580mm) X length (1,350mm)
Total weight: MAX. 560 kg
With large wheels and casters for easy to maneuver
Collision sensing against frontal and lateral collisions.

SPECIFICATIONS

Type : Mobile X-ray unit
Dual operation mode : AC line + Cordless
Drive speed : 0-5km/hr
Power source : 220VAC 60Hz, Single phase
Feature • - Battery and ultra capacitors built-in UPS.
• - Motor driven system with two (2) independent motors for each wheel
• - With sensors for protection against frontal and lateral collision
X-ray tube
Type : Rotating Anode
Anode Storage Capacity : 140KHU
Max Tube Voltage : 125kV
Max tube Currnet : 300mA
Focal spot : 0.6/1.2mm
Target Angle : 16°

X-ray generator
Power : 32kW
Frequency : Max. 300kHz
kVp Range : 40 ~ 125kV
mA Range : 10 ~ 320mA
mAs Range : 0.1 ~ 320mAs
