Unité de radiologie numérique mobile

Vendredi, août 30, 2019 - 15:36

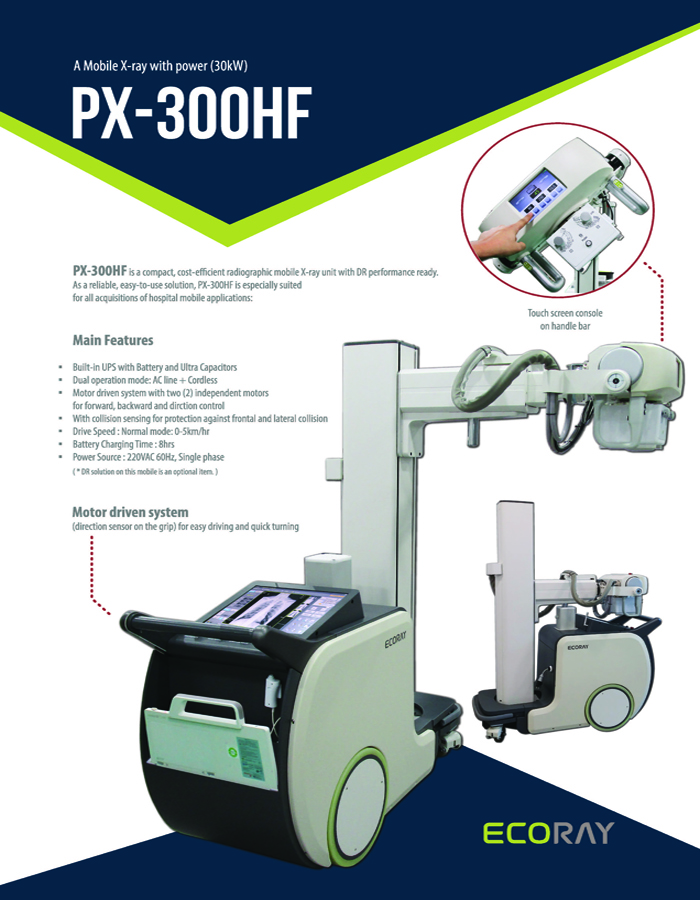

PX-300HF

The PX-300HF system is easy, flexible, and powerful to use for every situation.
Its motor driven system is able to make operators to perform the machine in small emergency rooms.
ECORAY’s high frequency inverter technology is heading to more premiums, durable and comfortable imaging solution.
The finest way for your DR solution on wheels

BENEFITS
The PX-300HF Digital System is easy to use, flexible and powerful for every situation. With its motor driven, you are able to operate it in small emergency rooms.
This digital unit performs excellent image quality and easy handling to be experienced, combined with wireless portable panel and built in work station.

MOTOR DRIVEN SYSTEM
There are 2 independent motors in PX-300HF that you can drive the unit quickly, effortless the driving velocity is up to 5km/h, and anti-collision sensors protect itself against any obstacle.

CAPACITOR BANK
New built-in ultra capacitor bank is more durable and efficient compared to equipments with only battery banks.
When the unit is charged, PX-300HF makes radiographic exemptions without being plugged to AC outlet.

Type : Mobile X-ray unit with telescopic tube arm and wireless portable detector
Dual operation mode : AC line + Cordless
Drive speed : 0-5km/hr
Power source : 220VAC 60Hz, Single phase
Feature • - Battery and ultra capacitors built-in UPS.
• - Motor driven system with two(2) independent motors for each wheel
• - With sensors for protection against frontal and lateral collision
X-ray tube
Type : Rotating Anode
Anode Storage Capacity : 140KHU
Max Tube Voltage : 150kV
Max tube Currnet : 500mA
Focal spot : 0.6/1.2mm
Target Angle : 12°

X-ray generator
Power : 30kW
Frequency : Max. 300kHz
kVp Range : 40 ~ 150kV
mA Range : 10 ~ 500mA
mAs Range : 0.1 ~ 320mAs

Support structure
Focal Spot Height : 550 ~2,050mm
Tube Arm Length : 780 ~ 1,210mm
Column Rotation : ±270°
Tube Rotation : ±180°
Width : 580mm
Height : 1,980mm
Weight : 570kg
